TPMS Light Diagnosis in Plano, TX

This page explains TPMS light meaning and diagnosis in Plano, TX, including direct and indirect TPMS. It covers common local causes, a step-by-step diagnostic process, and what to expect for time, fees, and warranties. Readers learn how quick checks, OBDII scans, sensor testing, and relearn procedures identify the root cause, with next steps such as tire repair, sensor replacement, or module work. It also offers safety, fuel economy impacts, financing options, and preventive tips for Plano drivers.

TPMS Light Diagnosis in Plano, TX

When the TPMS (Tire Pressure Monitoring System) warning light comes on, it is signaling a tire pressure or sensor issue that affects vehicle safety and fuel economy. In Plano, TX, with hot summers and frequent temperature swings between day and night, the TPMS light is commonly triggered by normal pressure changes—but it can also indicate a failed sensor or wiring problem that needs professional diagnosis. This page explains what the TPMS light means, common causes seen in Plano-area vehicles, the diagnostic process we use, likely findings, and what to expect for time, fees, warranties, and repair options.

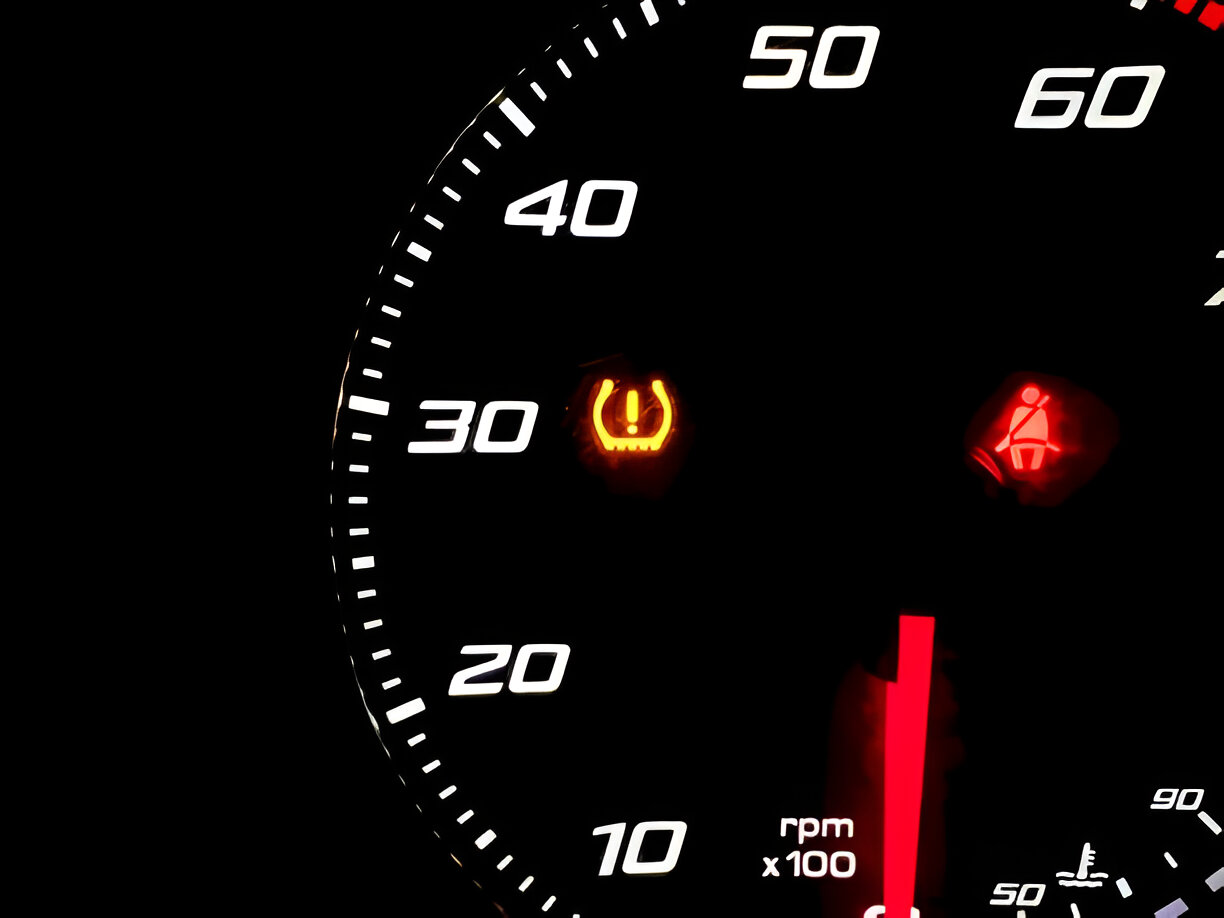

What the TPMS Warning Light Means

The TPMS light warns you that one or more tires may be underinflated, or that the system itself is not reading sensor data correctly. There are two basic TPMS types:

• Direct TPMS: wheel-mounted sensors report actual tire pressure to the vehicle computer.
• Indirect TPMS: uses wheel-speed sensors or ABS data to infer low pressure.

Either system can illuminate a warning when pressure is low, a sensor fails, or the control module is not receiving valid data.

Common TPMS Causes in Plano, TX

• Low tire pressure from temperature changes: Hot afternoon temperatures then cooler nights cause pressure fluctuation, especially in summer and during seasonal transitions.
• Slow leaks or punctures: Nails, rim corrosion, and valve-stem damage allow gradual loss of pressure.
• Failed or dead sensor battery: Most direct TPMS sensors have non-serviceable batteries that fade after 5 to 10 years.
• Sensor damage: Impact from curbs, rim corrosion, or improper mounting can damage a sensor.
• Wiring or module faults: Corroded connectors, wiring shorts, or a faulty TPMS control module can prevent sensor data from reaching the ECU.
• Aftermarket wheels or spare tires: Wheels without compatible sensors, or a spare tire without a sensor, can trigger a warning.
• TPMS sync/relearn needed: After tire rotation, new sensors, or certain repairs, the vehicle may need a relearn procedure.

Diagnostic Process — Step by Step

Our diagnostic approach is systematic and vehicle-specific to find the root cause efficiently:

1. Initial visual inspection

• Check tires for obvious damage, Valve stem condition, tread depth, and rim corrosion.
• Inspect spare tire mounting if applicable.

1. Manual tire pressure check

• Record pressures on all tires cold and compare to the vehicle placard. Correct pressures if low and monitor whether the TPMS light clears.

1. OBDII/TPMS scanner read

• Use a professional TPMS/scan tool to read system codes, sensor IDs, and sensor-reported pressures where available. This reveals which sensor (if any) is failing and whether the module is communicating.

1. Individual sensor testing

• Activate and identify each sensor with a TPMS tool to confirm battery health, signal strength, and frequency match. For vehicles with indirect systems, we examine wheel-speed data and ABS codes.

1. Vehicle-specific relearn procedures

• Perform the manufacturer’s relearn method if sensors are replaced or tire positions changed. Relearn options include OBD procedures, hand-held relearn tools, or drive cycles—depending on the make and model.

1. Final verification

• After repairs or relearn steps, re-scan the system and test drive as required to ensure the warning stays off and sensors report correctly.

Diagnostic Time and Fee Expectations

• Typical diagnosis time: 30 to 90 minutes depending on vehicle complexity and whether a drive relearn is needed.
• Diagnostic fee structure: a standard diagnostic fee covers the inspection, manual pressure checks, and scanner reads. In many cases this fee is credited toward recommended repairs if you authorize them the same day.
• If sensor replacement or module repair is required, additional time is needed for parts and relearn procedures. Drive relearns can add 10 to 30 minutes of driving time.

Safety and Fuel Economy Implications

• Safety: Underinflated tires reduce traction, increase stopping distance, and raise the risk of blowouts. A working TPMS helps maintain tire pressure for safer handling.
• Fuel economy: Proper tire pressure improves fuel efficiency. Even a small pressure loss can reduce MPG and increase wear.Addressing TPMS warnings promptly protects vehicle handling, tire life, and fuel costs—important for long commutes or highway driving common in Plano.

Typical Findings and Recommended Next Steps

• Low tire pressure only: Inflate tires to recommended pressure and inspect for slow leaks; if pressure stabilizes, no further action may be required.
• Slow leak or puncture: Repair or replace the tire and verify sensor integrity.
• Dead or failed sensor: Replace the faulty sensor(s) with vehicle-compatible units and perform a relearn. Note that some sensors include OE-style frequency requirements; aftermarket sensors must match.
• Corroded valve stem or damaged rim: Repair or replace as needed, then check sensor mounting.
• Faulty TPMS module/wiring: Diagnose electrical cause; repair wiring or replace module if necessary.
• Spare/no-sensor situation after tire change: Install a compatible sensor or reconfigure the TPMS as the vehicle requires.

Warranty and Financing

• Many repairs related to TPMS (sensor replacement, module replacement, and associated labor) qualify for standard repair warranties. Common coverage examples include 2-year/24,000-mile warranties on qualifying repairs and a standard 12-month/12,000-mile warranty on other work. Warranty terms depend on the specific repair and parts used.
• Flexible financing options are typically available for larger repair needs, with application processes designed to help manage unexpected costs. Financing availability and terms vary by provider and repair size.

Preventive Tips for Plano Drivers

• Check tire pressure monthly and before long trips, especially in hot weather or after big temperature swings.
• Inspect tires and valve stems during every oil change or service visit.
• Replace sensors in pairs or sets when several are aged, since simultaneous failures are common as vehicles get older.
• Use OEM-compatible sensors for reliability and correct frequency.
• After tire rotations or seasonal tire changes, confirm the TPMS light resets or schedule a quick scan and relearn.

ConclusionA lit TPMS light can be a simple pressure fix or a sign of sensor or module failure. A methodical diagnosis—visual inspection, manual pressure checks, TPMS/OBDII scanning, individual sensor testing, and a vehicle-specific relearn—quickly identifies the root cause and the most cost-effective repair path. Timely diagnosis protects handling, tire life, and fuel economy, which is especially important for Plano drivers facing hot weather and frequent commuting. Warranty coverage and financing options are commonly available to help cover qualifying repairs.
