The Shocking Truth About Your Car's Electrical System

Why Battery and Electrical System Basics for Drivers Matter More Than You Think

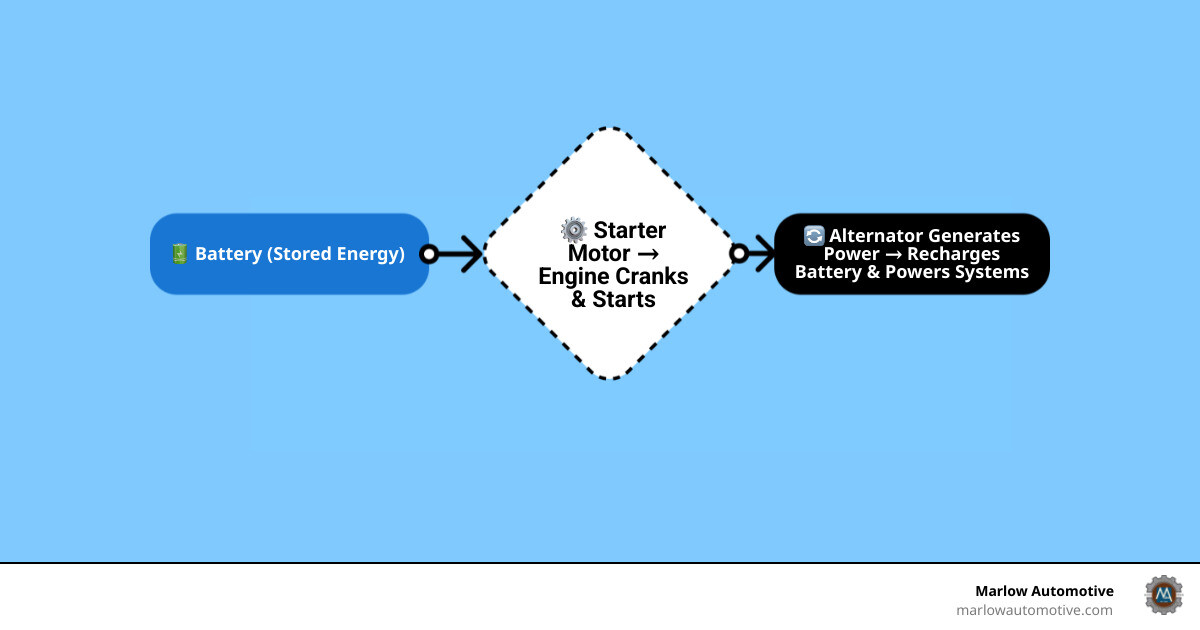

Battery and electrical system basics for drivers cover the three core components that keep your car running: the battery, the alternator, and the starter motor. Here is a quick overview:

• Battery - stores electrical energy and powers your car's systems when the engine is off
• Alternator - generates electricity while the engine runs and keeps the battery charged
• Starter motor - draws power from the battery to crank the engine and get it running
• Fuses and relays - protect circuits from overloads and control high-current components
• Wiring loom - distributes electrical current to every system throughout the vehicle

Most drivers don't think about their electrical system until something goes wrong. But here's a number worth knowing: battery faults cause nearly 35% of all vehicle breakdowns every year. That means more cars are stranded due to electrical issues than almost any other mechanical failure.

Your car's electrical system is a lot like the human body. The battery is the heart, pumping power through a network of wires — the veins — that reach every corner of the vehicle. When one part of that system weakens, everything connected to it can start to fail.

Modern vehicles in April 2026 rely on electrical power more than ever before. From engine management computers to safety sensors and infotainment systems, nearly every function your car performs depends on a healthy, well-maintained electrical system. Understanding how these components work together gives you a real advantage — you'll spot problems earlier, make smarter decisions, and avoid the kind of unexpected breakdowns that ruin a busy day.

The Core Components of Your Vehicle’s Power Grid

Think of your car's electrical system as a miniature power grid. It isn't just one part doing all the work; it's a sophisticated team of components working in a continuous loop. At the center of this grid are the battery, the alternator, and the starter, but they couldn't do their jobs without a supporting cast of wires and protectors.

The wiring loom acts as the highway system for electricity, bundling thousands of feet of wire together to distribute power to your headlights, dashboard, and engine sensors. To keep this highway safe, your car uses fuses and relays. Fuses are designed to "blow" or break the circuit if too much electricity flows through, preventing expensive components from melting or catching fire. Relays act as remote-controlled switches, allowing a small amount of current (like pushing a button on your dash) to control a much larger amount of current (like turning on your cooling fans).

Managing all of this is voltage regulation, which ensures that the electricity flowing through your car stays within a safe range. Without it, a surge from the alternator could fry your car's sensitive onboard computers. If you suspect your "grid" is failing, our team provides expert Auto Electrical Service to pinpoint exactly where the connection is dropping.

The Battery: The Heart of the System

The battery is where everything begins. Most vehicles use lead-acid technology, which relies on a chemical reaction between lead plates and an electrolyte solution (usually 65% water and 35% sulfuric acid) to store and release energy.

Its primary job is to provide the massive "gulp" of electricity needed to start your engine and to power accessories like your radio or lights when the engine is off. It also acts as a voltage stabilizer, smoothing out the flow of electricity to protect your car's electronics. Because it relies on chemistry, it is highly sensitive to temperature and age. If your car is struggling to "wake up" in the morning, a professional Battery Diagnosis in Plano TX can tell you if your heart is still beating strong or if it’s time for a replacement.

The Alternator: Your Onboard Generator

While the battery gets the car started, the alternator keeps it running. Driven by a belt connected to the engine, the alternator converts mechanical energy into electrical energy. It has two main jobs: powering your vehicle's electrical systems while you drive and recharging the battery so it's ready for the next start.

If the alternator fails, your battery will quickly drain until the car simply dies in the middle of the road. It’s a common misconception that the battery powers the car while driving—it doesn't! The alternator is the real workhorse. If you notice your lights dimming while you’re stopped at a red light, it might be time for Alternator Testing Plano TX.

The Starter Motor: Igniting the Engine

The starter motor is arguably the most powerful electrical component in your car. When you turn the key or press the start button, a small electrical signal tells the starter to draw a massive amount of current from the battery. The starter then physically engages a gear with the engine's flywheel, spinning the engine fast enough for combustion to take over.

Because the starter handles so much heat and friction, its internal components can wear down over time. If you hear a single "click" or a grinding noise when you try to start the car, you likely need a Starter Test in Fairview TX to see if the motor or the solenoid has reached its limit.

Understanding Battery and Electrical System Basics for Drivers: Ratings and Specs

When it's time to buy a new battery, the labels can look like a bowl of alphabet soup. However, understanding these battery and electrical system basics for drivers ensures you don't end up with a battery that leaves you stranded the first time the temperature drops.

If you aren't sure which specs your vehicle requires, we can perform a comprehensive Battery Test in Plano TX to compare your current battery's performance against its original factory ratings.

What is Cold Cranking Amps (CCA)?

Cold Cranking Amps (CCA) is a rating used in the battery industry to define a battery's ability to start an engine in cold temperatures. Specifically, it is the number of amperes a lead-acid battery at 0°F can deliver for 30 seconds while maintaining at least 7.2 volts.

In North Texas, we might not see sub-zero temperatures every day, but even a dip toward freezing can reduce a battery's power by 50%. If your battery has a low CCA rating, it might work fine in the summer but fail the moment a cold front hits. If your battery is over three years old, consider a Battery Replace in Allen TX before the winter season arrives.

The Importance of Reserve Capacity (RC)

Reserve Capacity is a safety net. It represents the number of minutes a fully charged battery at 80°F can be discharged at 25 amps before the voltage drops below 10.2 volts. In plain English: if your alternator stops working while you're driving home, the RC tells you how much time you have to get off the road safely before the car shuts down.

High reserve capacity is especially important for modern drivers who use many accessories, like high-end audio systems or dash cams. For those living in the suburbs, regular Auto Battery Service Richardson TX ensures your reserve capacity hasn't been compromised by "sulfation," a buildup that happens when batteries aren't kept fully charged.

Warning Signs of Electrical Failure

Your car is usually pretty good at telling you when it’s feeling "under the weather." The trick is knowing how to listen. Electrical problems often start small—a flickering light here, a slow window there—before escalating into a "no-start" situation.

Common warning signs include:

• The "Slow Crank": The engine sounds like it’s struggling to turn over (rur-rur-rur-vroom).
• Clicking Sounds: You turn the key and hear a rapid-fire clicking, which usually means the starter isn't getting enough juice.
• Strange Smells: A scent like burning rubber can indicate a slipping alternator belt, while a "rotten egg" smell often points to a leaking, overcharged battery.
• Dashboard Warnings: If the battery light or "Check Engine" light stays on, your car's computer has already detected a problem.

When these symptoms appear, it’s best to get Computer Diagnostics Garland TX to see if the issue is a simple battery swap or a more complex computer module failure.

Battery and Electrical System Basics for Drivers: Spotting Trouble Early

Early detection can save you hundreds of dollars. One of the best battery and electrical system basics for drivers is to perform a visual "walk-around." Check your headlights against a garage door—are they dim or flickering? Do your power locks seem sluggish?

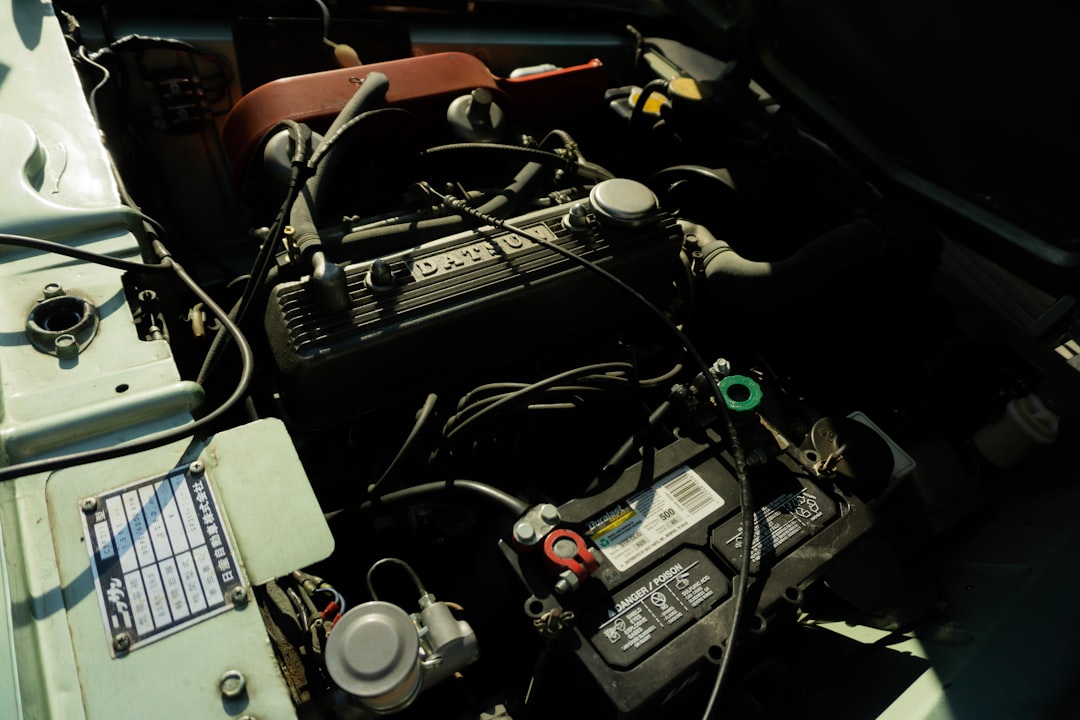

Pop the hood and look at the battery itself. If the case looks swollen or bloated, heat has likely damaged the internal plates. If you see white, ashy powder on the terminals, that's corrosion, which acts like a wall, blocking electricity from moving. If you spot these signs, don't wait for a breakdown; schedule a Battery Diagnosis in Richardson TX immediately.

Alternator vs. Starter Issues

It can be hard to tell which part is failing because the symptoms overlap.

• If the car won't start but makes a clicking noise, it's usually the battery or the starter.
• If the car starts but the lights stay dim and the engine eventually stalls, it’s almost certainly the alternator.
• If the car starts fine but you hear a loud screeching noise, your alternator belt might be loose or worn.

Because a bad alternator can actually "kill" a perfectly good battery by undercharging it, we recommend an Alternator Test Carrollton TX whenever you replace a battery that died prematurely.

Maintenance Tips to Extend Component Life

You don't have to be a master mechanic to take care of your car's electrical health. A little bit of "preventative medicine" goes a long way in ensuring your vehicle stays reliable through 2026 and beyond.

The most effective DIY task is cleaning your battery terminals. Corrosion (that white/blue crust) creates resistance, making your alternator work harder and shortening your battery's life. You can clean this safely with a simple mixture of baking soda and water and a stiff brush. Just make sure the connections are tight afterward—a loose terminal can cause intermittent power loss that feels like a major mechanical failure. For a professional deep clean and terminal protection, our Auto Battery Service Garland TX is a great addition to your annual maintenance.

Proactive Battery Care

Vibration is a silent killer of car batteries. If your battery isn't held down securely, the constant jiggling can cause the internal lead plates to crack or short-circuit. Always ensure your battery hold-down bracket is snug.

Additionally, pay attention to heat. While we often worry about the cold, summer heat actually does more long-term damage by evaporating the liquid inside the battery. If your car came with a plastic "heat shield" around the battery, make sure it stays there! If your battery has already suffered through a few Texas summers, it might be time for a Battery Replace in Carrollton TX.

Driving Habits and the Electrical System

Your driving habits have a direct impact on how long your electrical components last. Short trips (under 20 minutes) are particularly hard on batteries. It takes a significant amount of energy to start the engine, and if you only drive a few miles, the alternator doesn't have enough time to "pay back" the energy the battery spent.

To keep your system healthy:

• The 20-Minute Rule: Try to take your car for at least one 20-minute drive a week to allow the alternator to fully top off the battery.
• Accessory Management: Turn off your headlights, seat heaters, and AC before you shut off the engine. This reduces the load on the battery the next time you start the car.
• Unplug: Modern "parasitic" loads from phone chargers or GPS units can slowly drain a battery overnight.

For drivers in high-traffic areas, regular Auto Battery Service McKinney TX can help identify if your driving patterns are leading to "stratification," where the acid in your battery settles and reduces performance.

DIY Testing vs. Professional Diagnostics

If you own a multimeter, you can perform a basic health check at home. A healthy battery should read about 12.6 volts when the engine is off. If it’s at 12.2V, it’s only half-charged. With the engine running, the reading should jump to between 13.5V and 14.5V—this tells you the alternator is doing its job.

However, voltage doesn't tell the whole story. A battery can show 12.6V but still fail a "load test" because it can't provide enough current to move the starter. This is where Computer System Diagnostics Lucas TX becomes essential. We use professional-grade equipment to simulate the stress of starting an engine, giving us a much more accurate picture of your system's health.

Battery and Electrical System Basics for Drivers: When to Seek Help

Some problems are too complex for a driveway fix. If you find yourself replacing fuses every week, or if your battery dies overnight for no apparent reason, you likely have a parasitic drain or a "ground" issue.

Modern cars are filled with interconnected modules. A fault in your door lock sensor could theoretically keep the car's main computer "awake" all night, draining the battery. These types of "ghost" problems require specialized OBD-II scanning and live data analysis. If your car is acting possessed, bring it in for a Battery Diagnosis in Fairview TX so we can find the root cause.

Frequently Asked Questions about Vehicle Electronics

How long do car batteries typically last?

On average, a car battery lasts between 3 and 5 years. In the harsh heat of North Texas, many batteries lean toward the 3-year mark. Heat accelerates the chemical reactions inside the battery, leading to faster degradation of the internal plates. If your battery is approaching its fourth birthday, we recommend a Battery Replace in Plano TX as a preventative measure.

Why does my car struggle to start in the cold?

Cold weather is a double whammy for your electrical system. First, the chemical reaction inside the battery slows down, providing about 50% less power than usual. Second, your engine's oil thickens in the cold, making it much harder for the starter motor to turn the engine over. If your battery is already weak, the cold is usually the "final straw." Residents in cooler pockets of the area often opt for a Battery Replace in Fairview TX to ensure they aren't stuck on a frosty morning.

Can a bad alternator ruin a new battery?

Yes, absolutely. If an alternator is undercharging, the battery stays in a partially discharged state, leading to sulfation (a buildup of crystals on the plates that permanently reduces capacity). If the alternator overcharges, it can literally "cook" the battery, boiling away the electrolyte. This is why we always recommend an Alternator Test in Fairview TX whenever a battery fails unexpectedly.

Conclusion

Understanding battery and electrical system basics for drivers is one of the best ways to ensure your vehicle remains a reliable partner in your daily life. From the heart-like pulse of the battery to the constant energy of the alternator, these components work tirelessly to keep you moving.
