Breaking Down the Transmission Diagnostic Process

When Transmission Troubles Strike in the Summer Heat

If your vehicle is struggling to shift gears, randomly dropping into limp mode, or hesitating at green lights, Breaking Down the Transmission Diagnostic Process is the first step toward understanding exactly what is happening under the hood. At Marlow Automotive, we know firsthand that experiencing a slipping transmission or harsh, clunky shifting is highly stressful, especially when it happens during extreme seasonal temperatures. The July peak summer heat puts an immense strain on every mechanical component in your vehicle, and in our Plano TX shop, we frequently see the transmission as the first system to show signs of distress under that thermal load.

Many drivers mistakenly believe a quick OBD2 code scan at a local auto parts store will tell them exactly what is wrong. You might see a check engine light, plug in a scanner, and get a code. However, our team constantly reminds customers that a code scan only provides a symptom, not the root cause. It leaves drivers entirely unsure if they are facing a minor, easily fixable sensor issue or major internal hardware damage. The computer knows a parameter is out of range, but it cannot see the mechanical reality inside the transmission casing.

Understanding what our professional technicians actually do during a comprehensive evaluation is vital. It removes the guesswork and prevents you from throwing expensive parts at a problem that requires a completely different solution. Knowing the full, multi-step process helps drivers recognize when it is time to stop guessing and seek accurate automotive diagnostic and repair services. A true evaluation from our team goes far beyond the dashboard lights, combining digital data with rigorous physical testing.

The Limitations of a Basic OBD2 Code Scan

The underlying problem: Modern vehicles are equipped with highly sensitive onboard diagnostics. These computer systems monitor hundreds of parameters per second and trigger a check engine light or a flashing overdrive light when a reading falls out of the manufacturer's specified range. Because of this, it is easy to assume that the computer knows exactly what is broken.

The actual cause of confusion: A generic scanner will pull a diagnostic trouble code (DTC), such as P0730 for an "incorrect gear ratio." While that sounds specific, it actually is not. The scanner cannot tell the technician why the ratio is incorrect. Is it because a physical gear is stripped? Is a hydraulic seal leaking pressure? Has the fluid degraded to the point of failure? The computer only reports the end result of the failure, not the mechanical origin.

The professional solution: Relying solely on these electronic codes can lead to replacing expensive external sensors when the actual problem is a hidden internal hydraulic leak or severe thermal breakdown. Proper auto diagnostics in Plano require physically verifying the condition of the transmission beyond what the computer reports. Our technicians must bridge the gap between the electronic symptom and the mechanical reality.

Comparing a Code Scan to a True Diagnostic

• Tool Used — Basic OBD2 Code Scan: Handheld code reader or smartphone app — Comprehensive Diagnostic Process: Professional scan tool, pressure gauges, multimeters

• What It Checks — Basic OBD2 Code Scan: Electronic fault codes stored in the computer — Comprehensive Diagnostic Process: Live data, hydraulic pressure, electrical resistance, fluid health

• Root Cause Identification — Basic OBD2 Code Scan: Low (Identifies symptoms only) — Comprehensive Diagnostic Process: High (Pinpoints exact mechanical or electrical failure)

• Risk of Misdiagnosis — Basic OBD2 Code Scan: High (Often leads to "parts cannon" repairs) — Comprehensive Diagnostic Process: Low (Repairs are verified before parts are ordered)

Phase 1: Evaluating Fluid Condition and Thermal Breakdown

Transmission fluid is the lifeblood of your vehicle's shifting system. It acts as both a hydraulic fluid to enable smooth shifting and a vital coolant for internal gears, clutches, and bearings. Because it serves this dual purpose, evaluating its condition is always the first physical step our team takes in a thorough diagnostic evaluation.

The Impact of Extreme Weather on Fluid Health

Our technicians begin by inspecting the fluid's level, color, and odor to check for signs of severe oxidation or burnt friction material. Healthy fluid is typically bright red and translucent. When extreme ambient temperatures hit, the fluid is put to the ultimate test. For example, during July peak summer heat in Plano TX, we regularly observe how extreme outdoor temperatures alter the transmission fluid's viscosity. The severe thermal stress on transmission coolers accelerates fluid degradation rapidly.

Degraded, overheated fluid loses its crucial viscosity and lubrication properties. When this happens, it can cause erratic shifting behavior, delayed gear engagement, and harsh clunks that perfectly mimic catastrophic mechanical failure. However, in our experience, if caught early enough during a physical diagnostic, these terrifying symptoms might only require a comprehensive fluid correction rather than a complete transmission rebuild.

What our technicians look for during the fluid check:

• Bright Red Fluid: Normal, healthy condition.

• Dark Brown Fluid: Aging fluid that has been subjected to heat cycles; may require replacement.

• Black or Burnt-Smelling Fluid: Indicates severe thermal breakdown and burning of the internal friction clutches.

• Milky or Pink Fluid: A sign of cross-contamination, usually meaning engine coolant has breached the transmission cooler inside the radiator.

• Metal Shavings on the Dipstick: A clear indicator of internal hard-part failure and grinding gears.

Phase 2: Testing Live Hydraulic Pressure

Once the fluid condition is verified, our diagnostic process moves deep into the mechanical operation of the transmission. Automatic transmissions rely on highly precise hydraulic pressure to engage and disengage gears smoothly. If this pressure drops even slightly, the clutches will slip, generating massive amounts of heat and causing immediate drivability issues.

Testing this pressure is a critical step that cannot be skipped, and it requires specialized physical tools. Here is an overview of how our team evaluates this phase:

• Locating the Test Ports: Our technicians consult the manufacturer's service data to locate specific hydraulic test ports on the exterior of the transmission housing.

• Connecting the Gauges: We use specialized, high-capacity hydraulic pressure gauges threaded directly into these ports to measure the raw mechanical force being generated by the transmission's internal pump.

• Running the Vehicle: The vehicle is safely evaluated in our service bay. We shift through the gears while carefully monitoring the pressure readings at idle, under load, and during gear transitions.

• Comparing Live Data to Specifications: The live fluid pressure readings are compared against the manufacturer's exact required specifications for that specific make and model.

• Identifying Hidden Leaks: By monitoring the gauges, our team can observe if the internal pump is generating adequate pressure or if there is a sudden drop. Testing live fluid pressure allows us to identify internal hydraulic leaks—such as a blown seal or a cracked valve body—that an electronic scanner would never detect.

Phase 3: Verifying Electronic Components and Solenoids

Modern transmissions are not just hydraulic; they are electro-hydraulic. The flow of pressurized fluid is controlled by transmission solenoids, which are essentially electronic valves. These valves open and close based on precise commands from the vehicle's powertrain control module (PCM).

Why Solenoids Matter in the Diagnostic Process

When a solenoid fails, it can cause the vehicle to get stuck in a single gear (often called limp mode) or fail to shift entirely. Because solenoids are electronic, they will usually trigger a check engine light. However, a generic code reader will simply say "Solenoid A Circuit Malfunction." It will not tell you if the solenoid itself is broken, if a wire is chewed through, or if the computer is failing to send the signal.

Instead of just replacing a solenoid based on a generic code, our professional technicians perform physical tests on the wiring harness. Checking solenoid electrical resistance with a digital multimeter confirms whether the component itself has failed electrically. If the resistance (measured in ohms) is out of specification, the solenoid is dead. If the resistance is perfect, our team knows the solenoid is fine and the issue actually lies within the external wiring harness, a corroded connector, or the vehicle's main computer.

This level of physical verification prevents you from paying for a brand-new solenoid assembly only to find out the vehicle still will not shift because a simple ground wire was chafed against the engine block.

Phase 4: The Road Test and Real-World Verification

At Marlow Automotive, we believe a comprehensive diagnostic is never complete without observing how the vehicle behaves in the real world. Provided the vehicle is safe to drive and not leaking fluid profusely, one of our professional technicians will take it for a targeted road test. This step is about replicating the exact concern you experience on your daily commute.

During the road test, our technicians do not just listen for noises; they monitor live data streams on a professional scan tool while driving. They watch the computer command a shift, and then they measure the milliseconds it takes for the transmission to actually execute that shift under load. This step verifies whether the symptoms—like slipping on an incline, shuddering at highway speeds, or delayed engagement at a stoplight—match the data gathered in the shop.

Thorough verification ensures that when we recommend repairs, they directly address the root cause. For instance, our team recently helped a driver with an older '96 Jeep Cherokee who experienced severe transmission problems. By conducting a full verification road test and diagnostic, our technicians pinpointed the exact issue to a few failing seals and bearings rather than the entire gearset. The vehicle was repaired and returned by the end of the day with no unnecessary upsells, proving the value of accurate testing over broad assumptions.

How a Complete Diagnostic Process Protects Your Vehicle

The risk of cutting corners: Skipping physical tests and relying solely on dashboard codes often leads to misdiagnosis. When mechanics guess based on a scanner alone, we see it frequently result in unnecessary parts replacement or, worse, premature and entirely avoidable transmission rebuilds. You do not want to replace an entire transmission if the only issue was a faulty ground wire or a single stuck valve.

The value of scientific testing: A scientific, multi-step verification process protects the vehicle owner by pinpointing the exact point of failure. By cross-referencing electronic data with physical pressure tests and fluid analysis, our technicians build a complete picture of the transmission's internal health. We go beyond simple OBD2 code reading by performing comprehensive physical tests—including checking solenoids and live fluid pressure—to ensure accurate, honest diagnoses every single time.

Preventing Secondary Damage

Recognizing the early signs your transmission needs repair and seeking a comprehensive evaluation immediately can save a vehicle from extensive secondary damage. If a minor pressure leak is ignored, the resulting friction will eventually destroy the internal clutches, turning a manageable repair into a major overhaul. True diagnostics provide clarity, ensuring that any recommended service is strictly necessary, highly accurate, and targeted precisely at the failing component.

Gaining Confidence in Your Transmission's Health

Understanding the physical and electronic tests involved in a transmission diagnostic removes the mystery and stress from the repair process. Drivers can feel confident knowing that our professional evaluations rely on hard, measurable data—like hydraulic pressure readings and electrical resistance—not just a generic code pulled from a dashboard light.

If you are experiencing shifting issues, strange noises, or warning lights, taking the time to get a complete diagnostic is the smartest step forward. Do not wait for a minor hesitation to turn into a major breakdown on the highway. Explore professional transmission help with our team to ensure your vehicle is evaluated accurately and safely, giving you the peace of mind you need for the road ahead.

Frequently Asked Questions

What happens during a transmission diagnostic?

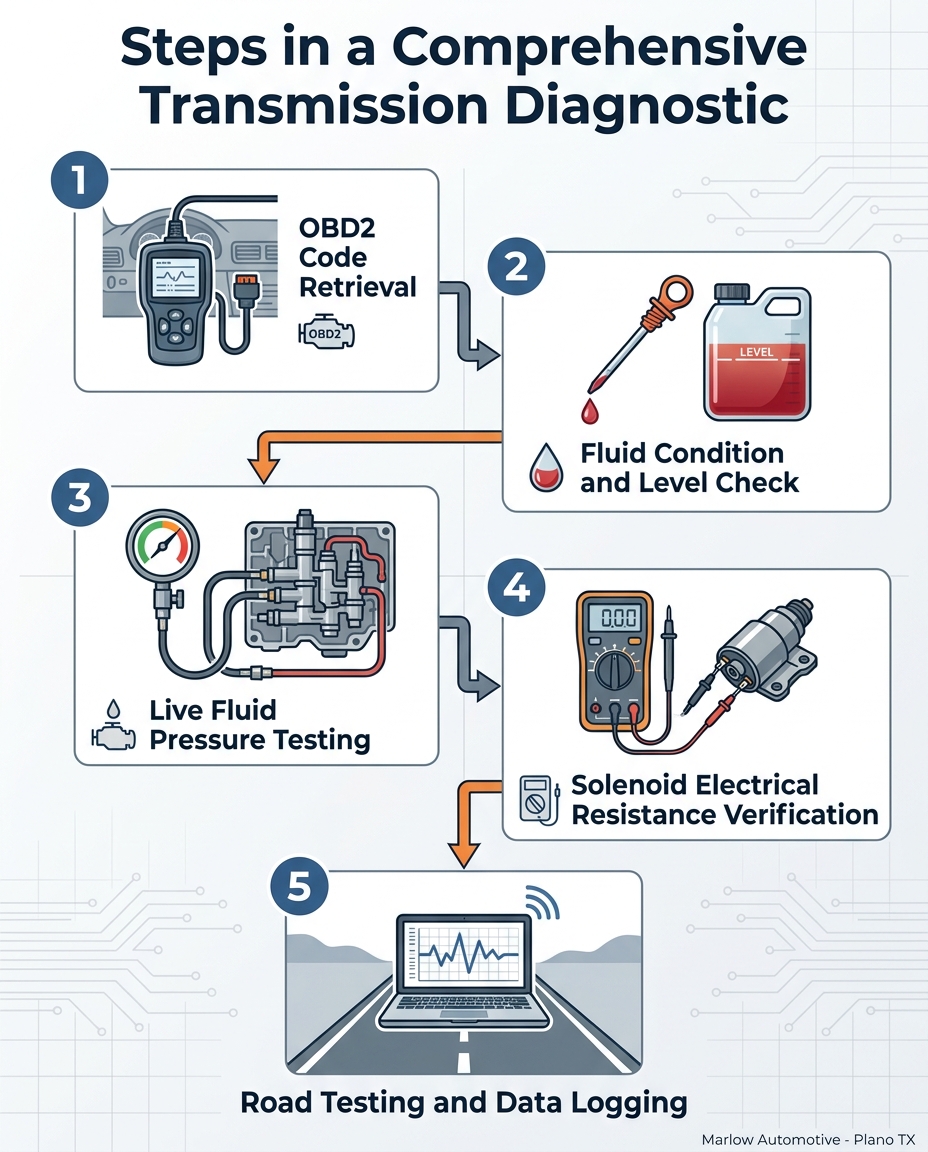

A comprehensive transmission diagnostic involves multiple steps to pinpoint the exact failure. It begins with pulling computer codes, but our team quickly moves to physical inspections. We check the fluid condition, measure live hydraulic pressure with gauges, test the electrical resistance of solenoids, and perform a road test with a live data scanner to observe the transmission under real-world load.

Can a regular diagnostic tool check a transmission?
A regular diagnostic tool can only read the electronic symptom codes stored in the vehicle's computer. It cannot physically check the transmission's mechanical health. While a scanner might reveal an "incorrect gear ratio" code, it takes physical tools like pressure gauges and multimeters for our technicians to determine if the cause is a broken gear, a bad wire, or a leaking hydraulic seal.

How long does a transmission diagnostic take?
A thorough transmission diagnostic typically takes our team between one and two hours to complete properly. This timeframe allows us to pull codes, inspect the fluid, connect hydraulic pressure gauges, test the electrical solenoids, and take the vehicle for a comprehensive road test to replicate the exact shifting issues.

Why is my transmission slipping but there is no check engine light?
A transmission can slip without triggering a check engine light if the failure is purely mechanical or hydraulic rather than electrical. For example, if the internal fluid pressure is slightly low due to a worn seal, the clutches may slip before the computer's sensors register a parameter far enough out of range to trigger a dashboard warning light.

Why are physical transmission tests necessary after a code scan?
Physical tests are necessary because OBD2 codes only indicate the end result of a problem, not the root cause. Without testing live fluid pressure and solenoid electrical resistance, a mechanic is just guessing at the repair. Physical testing prevents misdiagnosis and ensures you do not replace expensive parts unnecessarily.

Does extreme summer heat affect transmission diagnostic results?
Yes, extreme summer heat significantly affects transmission diagnostics because high ambient temperatures alter fluid viscosity. Overheated fluid can cause erratic shifting and pressure drops that mimic catastrophic hardware failure. A proper diagnostic accounts for this thermal breakdown, ensuring our technicians can distinguish between degraded fluid and a destroyed internal gear.
