How to Understand Clutch Replacement in Plano

What Clutch Replacement Involves — and Why It Matters in Plano, TX

What does clutch replacement involve is a fair question to ask before handing over your keys — and here's the short answer:

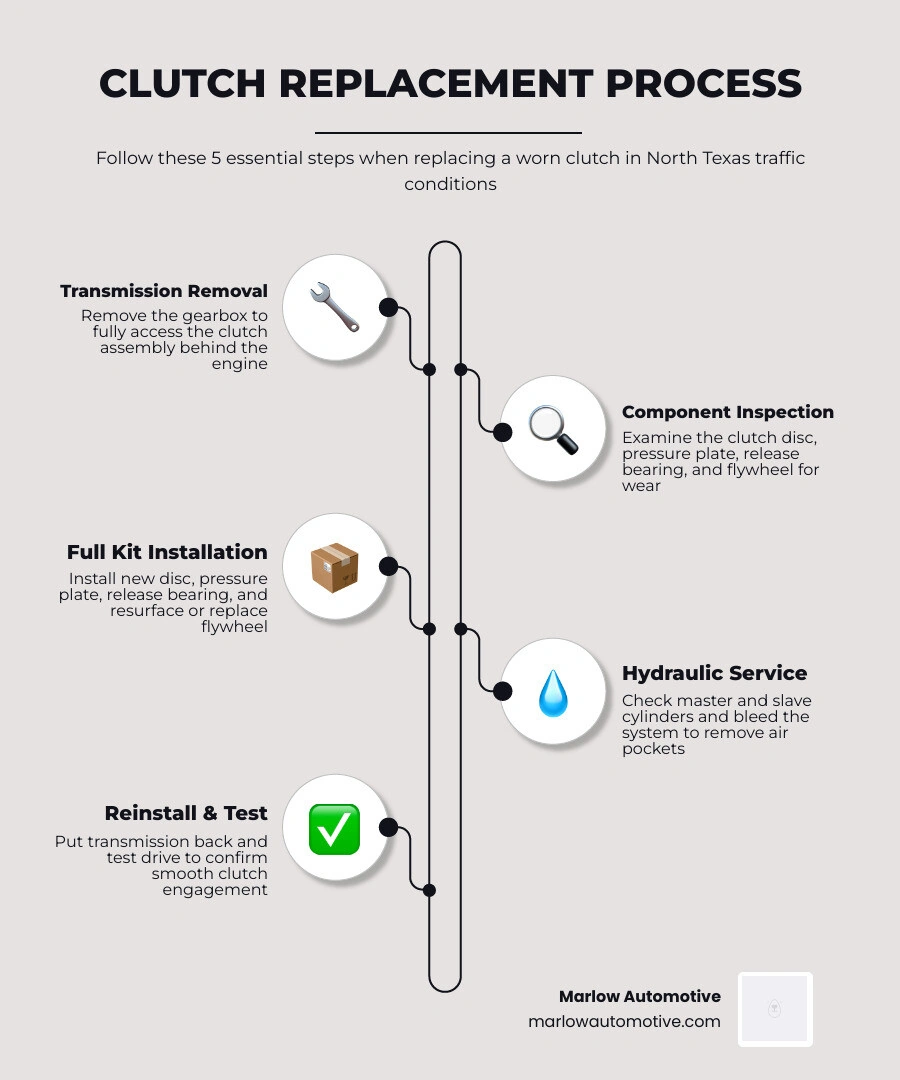

1. Transmission removal — The gearbox must come out to access the clutch assembly. This is the most labor-intensive part of the job.
2. Component inspection — The clutch disc, pressure plate, release bearing, pilot bearing, and flywheel are all checked.
3. Full clutch kit installation — Most mechanics replace the disc, pressure plate, and release bearing together rather than swapping a single part.
4. Flywheel resurfacing or replacement — The flywheel is inspected for grooves, cracks, or heat damage and addressed before reassembly.
5. Hydraulic system service — The master and slave cylinders are checked, and the system is bled to remove air pockets.
6. Transmission reinstallation and testing — Everything goes back together, and the vehicle is test-driven to confirm proper clutch engagement.

The whole process typically takes between 2 and 6 hours, sometimes longer depending on your vehicle's layout and age.

If you drive a manual transmission vehicle anywhere in Plano or the surrounding Dallas–Fort Worth area, a failing clutch is not something to put off. Clutches generally hold up for 50,000 to 100,000 miles, but North Texas driving conditions — stop-and-go traffic on the 75, summer heat, and frequent highway commutes — can accelerate wear faster than average. When the clutch does go, it takes a significant amount of disassembly to reach it, which is why this repair tends to be one of the more involved jobs a shop takes on.

Recognizing the Signs of Clutch Wear in North Texas

Driving in May 2026 means navigating more traffic than ever in the DFW metroplex. Whether you're commuting from Richardson or heading through Frisco, your clutch is the mediator between your engine's power and your wheels' movement. When it starts to fail, it won't just stop working overnight; it will give you several warning "shouts."

Common symptoms of a worn clutch include:

• Slipping Gears: You notice your engine RPMs increasing when you press the gas, but your speed doesn't increase at the same rate. This usually happens in higher gears first.
• Spongy or Soft Pedal: If the clutch pedal feels like you're stepping on a marshmallow, or if it stays near the floor, there is an issue with the pressure plate or the hydraulic system.
• Burning Smell: A distinct, acrid odor similar to burnt toast or scorched rubber often indicates the friction material on the clutch disc is overheating.
• Grinding Noises: Hearing a "growl" or a "chirp" when you press the pedal often points toward a failing release bearing.
• High Biting Point: If you have to release the pedal almost all the way before the car starts to move, the disc is likely worn thin.
• Difficulty Shifting: If it feels like you're wrestling with the gear shifter just to get into first or reverse, the clutch may not be fully disengaging.

If you notice these red flags, the first step is a professional Transmission Diagnosis in Plano TX. Catching a slipping clutch early can prevent damage to the flywheel, which is a much more complex component to replace.

What does clutch replacement involve for initial diagnosis?

Before we start unbolting your transmission, we perform a comprehensive evaluation. This includes a road test to feel the engagement point and check for slippage under load. We also perform a visual inspection of the external components, such as the clutch cable (on older models) or the hydraulic fluid levels in the master cylinder. A quick Clutch Repair in Carrollton TX assessment ensures we aren't replacing a whole clutch when the problem is actually a simple hydraulic leak or a loose linkage.

What Does Clutch Replacement Involve Step-by-Step?

Replacing a clutch is like heart surgery for your car's drivetrain. It requires precision, heavy lifting, and a lot of patience. Here is the general workflow our technicians follow:

1. Preparation and Safety: We disconnect the battery and raise the vehicle on a lift. Safety is paramount, as the transmission is incredibly heavy and requires specialized jacks.
2. Clearing the Path: To get to the clutch, we have to remove everything in the way. This often includes the driveshaft (on RWD vehicles), the starter motor, and the gear linkage. On front-wheel-drive cars, we may need to remove the axles or "half-shafts."
3. Transmission Removal: We support the engine and unbolt the bell housing. The transmission is then carefully lowered and moved aside. This is the moment where we can finally see the clutch assembly bolted to the back of the engine.
4. Old Component Removal: The pressure plate is unbolted, and the worn clutch disc is removed. We also pull the old release bearing and the pilot bearing (a small bushing in the center of the flywheel).
5. Cleaning and Inspection: We clean the area to remove "clutch dust" and inspect the rear main seal of the engine for oil leaks. If that seal is leaking, now is the time to fix it!
6. Installation: We use a specialized alignment tool to center the new clutch disc against the flywheel. The new pressure plate is then bolted over it and torqued to exact factory specifications.
7. Reassembly: The transmission is raised back into place, the bell housing bolts are tightened, and all linkages, sensors, and driveshafts are reconnected.

For those in the neighborhood, getting a Clutch Repair in Plano TX means ensuring every single bolt is torqued correctly to prevent vibrations down the road.

Comparing clutch discs and full clutch kits

When you ask, "what does clutch replacement involve?", you might wonder if you can just swap the worn disc and keep the rest. While technically possible, it's a bad idea. The labor to get into the transmission is the most significant part of the service. If you replace only the disc and the release bearing fails two months later, you'll have to undergo the entire labor process all over again.

A standard clutch kit includes:

• Clutch Disc: The friction material that grabs the flywheel.
• Pressure Plate: The spring-loaded device that clamps the disc.
• Release Bearing: The part that pushes on the pressure plate to disengage the engine.
• Pilot Bearing/Bushing: Supports the end of the transmission input shaft.
• Alignment Tool: Ensures the disc is perfectly centered during install.

Using a full kit for your Manual Transmission Repair in Frisco TX is the only way to ensure long-term reliability.

What does clutch replacement involve for the hydraulic system?

Most modern vehicles use a hydraulic system rather than a cable to operate the clutch. This system includes a master cylinder (connected to your pedal) and a slave cylinder (connected to the clutch fork).

During a replacement, we must:

• Inspect cylinders for leaks.
• Replace fluid that may be contaminated or degraded by the high heat of North Texas summers.
• Bleed the system: This removes air pockets that can cause a "spongy" pedal. Without a proper bleed, you may find it impossible to shift gears smoothly. This is a critical step in any Transmission Repair in Frisco TX.

Understanding Timeframes and Service Factors

How long will your car be in the shop? Generally, a clutch replacement takes between 2 and 6 hours. However, several factors can push this closer to a full day:

Other factors include the vehicle's age — rusted bolts in older cars can be a nightmare to remove — and parts availability. At Marlow Automotive, we aim for same-day service on most repairs, but we always prioritize doing the job right over doing it fast.

Post-Replacement Care and Longevity Tips

Once you pick up your car, the work isn't quite over. A new clutch needs a break-in period, typically the first 500 miles of city driving. During this time, the friction material on the disc "beds into" the flywheel and pressure plate, much like new brake pads.

To make your new clutch last another 100,000 miles, follow these tips:

• Avoid "Riding" the Clutch: Don't keep your foot resting on the pedal while driving. Even slight pressure can cause the release bearing to spin and wear prematurely.
• Don't Hold on Hills: In places like the rolling hills of Lucas or Fairview, use your brakes to hold the car at a stoplight, not the clutch.
• Smooth Engagement: Don't "dump" the clutch or engage in aggressive launches.
• Monitor Fluids: Check your hydraulic fluid levels during your regular oil changes at our Plano location.
• Towing Caution: If you use your truck for towing, be extra gentle during gear changes to avoid excessive heat buildup.

Frequently Asked Questions about Clutch Services

Is it recommended to attempt a DIY clutch replacement?

While we admire the "do-it-yourself" spirit, clutch replacement is a high-level mechanical task. It requires specialized tools like transmission jacks, torque wrenches, and alignment tools. Furthermore, transmissions are incredibly heavy and dangerous if they slip off a standard jack. Professional calibration ensures your warranty stays intact and your drivetrain remains balanced.

How long should a new clutch typically last?

Most clutches last between 50,000 and 100,000 miles. If you do a lot of highway driving between Garland and McKinney, you might see even more mileage. However, heavy towing or aggressive "stop-and-go" commuting in Dallas traffic can shorten that lifespan significantly.

Why does a new clutch sometimes smell after installation?

It is perfectly normal to notice a slight "hot" or "burnt" smell for the first few days. This is simply the new friction material bedding in and the manufacturing oils burning off the metal surfaces. If the smell persists after a week or is accompanied by smoke, bring it back for a check-up.

Conclusion

At Marlow Automotive, we understand that your vehicle is your lifeline to work, family, and the community. Whether you're coming from Allen, Plano, or Richardson, we provide the expert care your manual transmission deserves. Our ASE-certified technicians don't just "swap parts"; we perform a holistic service backed by our 2-year/24,000-mile warranty on qualifying repairs.

We pride ourselves on transparent communication, providing you with photos and documentation of your worn components so you can see exactly why the repair is necessary. Don't wait until you're stranded on the side of the Central Expressway with a smoking gearbox.

Schedule your professional clutch service with us today or visit our shop at 1713 N. Central Expressway in Plano.
