Decoding Instrument Cluster Warning Lights Triggered by Heat

The Late-Summer Phenomenon of "Ghost" Dashboard Warnings

When late summer arrives and the back-to-school transition begins, our team at Marlow Automotive sees drivers across the Plano region face a frustrating seasonal mystery: decoding instrument cluster warning lights triggered by heat. You leave your air-conditioned office and step into a baking-hot vehicle interior on an August afternoon in Texas. Halfway home, your dashboard suddenly lights up like a holiday tree. ABS, StabiliTrak, or Check Engine warnings stare back at you from the gauge cluster. The engine feels completely fine, the steering is normal, and by the next morning, the lights have completely vanished without a trace.

If you need a reliable solution to this frustrating cycle, scheduling professional auto electrical service is the best way to uncover the root cause.

You are left with a difficult decision: do you ignore these "ghost" warnings, assuming it was just a random glitch, or do you bring the vehicle in for professional electrical diagnostics? In our experience, these intermittent lights are almost never random phantom electrical gremlins. They are a known, diagnosable physical issue. In most cases, the core concrete problem is thermal expansion separating microscopic cracks in aging circuit board solder joints directly behind your dashboard. Understanding the physical mechanics behind this seasonal phenomenon is the first step toward restoring confidence in your vehicle's instrument cluster.

How Extreme Cabin Temperatures Impact Electronics

In our years of diagnosing electrical gremlins at Marlow Automotive, we've found that to understand why your dashboard behaves erratically in the late summer, we have to look at the extreme environment inside your parked vehicle. The ambient outdoor heat is only a starting point. Once the sun begins beating down on your windshield, the interior of your car transforms into a high-efficiency oven, subjecting sensitive components to immense thermal stress.

The Greenhouse Effect on Your Dashboard

When you park your car in direct sunlight, solar radiation penetrates the windshield and heats up the solid surfaces inside the cabin. Because the windows are rolled up, there is a complete lack of airflow while the vehicle is parked. This trapped heat bakes the upper instrument panel for hours. On a typical late-summer day where ambient outdoor temperatures reach 100 degrees, the interior cabin can quickly far exceed 140 degrees Fahrenheit. This severe greenhouse effect creates an environment that automotive electronics were designed to survive, but not without eventual wear and tear.

• Direct solar radiation: The sun's UV and infrared rays pass through the glass, transferring heat directly into the dark plastics of the dashboard.

• Trapped ambient air: Without ventilation, the heated air cannot escape, creating a convection oven effect around the steering column.

• Prolonged exposure: A vehicle parked from 9:00 AM to 5:00 PM absorbs hours of continuous thermal energy.

Heat-Soaking in Automotive Electronics

Modern vehicles rely heavily on sensitive electronics housed directly behind the dashboard plastic. These components include the instrument cluster circuit board, microprocessors, and digital displays. As the cabin temperature climbs past 140 degrees, these plastic and metal components absorb and retain the heat—a process known as heat-soaking.

Even if you start the car and blast the air conditioning, there is a significant delay before the internal dashboard components actually cool down. The cold air from the vents cools your face and the ambient air in the cabin, but the dense circuit boards buried deep inside the dash remain blistering hot for a long time. If you are experiencing these heat-soaked electrical failures, seeking professional car electrical repair in Plano is an excellent way to prevent permanent damage to your dashboard electronics.

Thermal Expansion and Circuit Board Solder Joints

The bridge between general heat stress and specific electrical component failure comes down to basic physics. Thermal expansion is the tendency of matter to change its shape, area, and volume in response to a change in temperature. In the context of automotive electronics, this physical reaction is the primary reason your warning lights trigger on hot August afternoons.

The Anatomy of an Instrument Cluster Board

Your instrument cluster is essentially a complex computer motherboard. It routes electrical signals from various sensors throughout the vehicle to the specific warning lights and gauges on your dash. The role of solder—a fusible metal alloy—is to maintain continuous electrical continuity between the microchips, resistors, and the printed circuit board (PCB) substrate. Older or higher-mileage vehicles are far more susceptible to wear in these connections simply because they have endured more seasons of temperature fluctuations.

The materials involved in this process include:

• PCB Substrate: The fiberglass or composite board that holds the components.

• Copper Traces: The conductive pathways printed onto the board.

• Solder Joints: The metal beads that anchor components to the board and conduct electricity.

Because these are dissimilar materials, they expand and contract at different rates when exposed to extreme heat. The fiberglass board might expand slightly more than the metal solder, creating microscopic physical stress at the connection points.

Micro-Cracks: The Invisible Culprit

Over years of hot-and-cold cycles in Plano—from freezing winter nights to blistering summer afternoons—this constant physical stress creates microscopic cracks in the solder joints. These micro-cracks are often invisible to the naked eye. When the circuit board is cool, the metal contracts and the crack closes, allowing electricity to flow normally. However, when the dashboard becomes heat-soaked, extreme heat physically pushes these micro-cracks apart.

This separation breaks the electrical connection. When the instrument cluster loses communication with a sensor because of an open circuit, it defaults to illuminating the warning light to alert the driver of a potential fault. This mechanical separation is the root cause behind most intermittent dashboard electrical gremlins that seem to come and go with the weather.

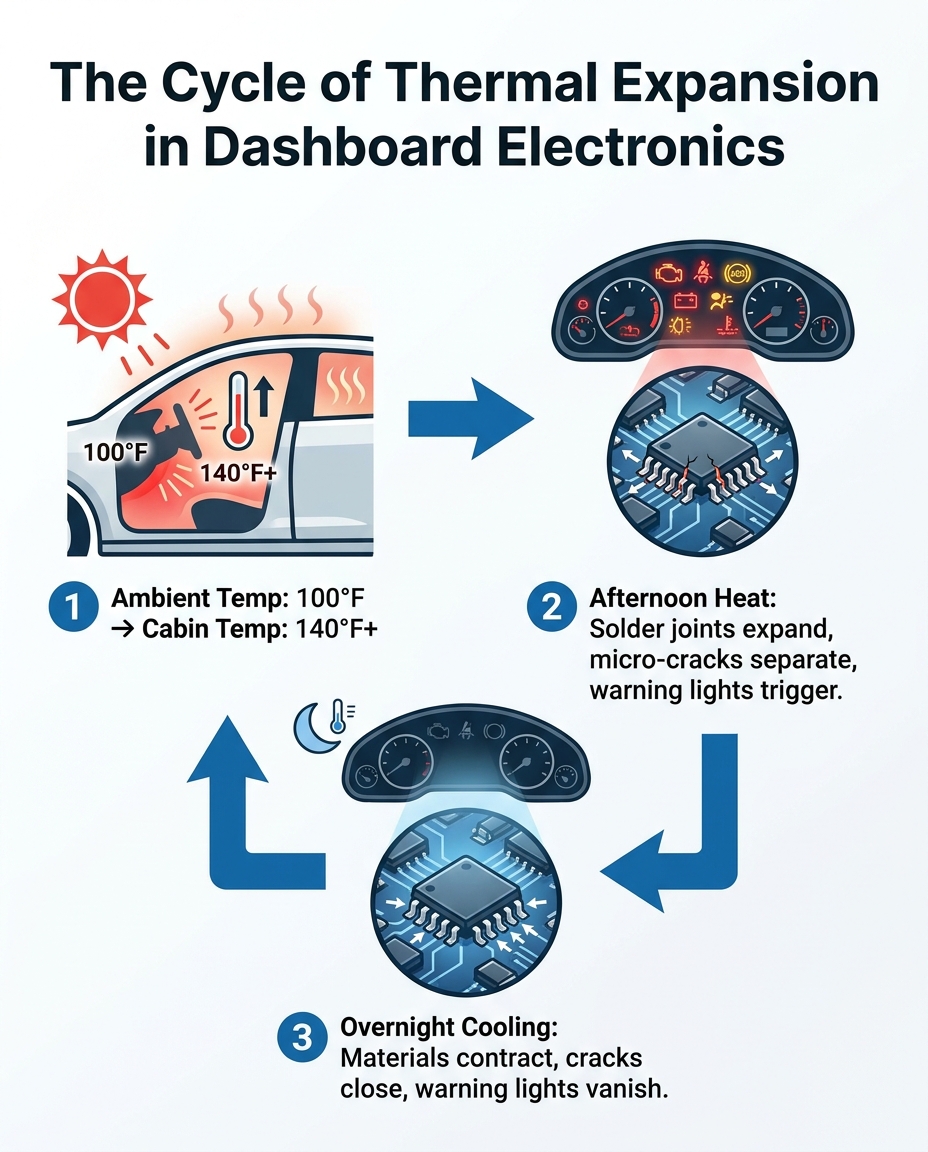

The Morning vs. Afternoon Commute: Why Symptoms Vanish

One of the most confusing aspects of this phenomenon is the distinct pattern it follows. You might drive home in the afternoon with a dashboard full of errors, only to find a perfectly normal vehicle waiting for you the next morning. This "ghost" behavior is incredibly common in our shop, and understanding why it happens can help validate your experience.

The Contraction Phase

When you park your car in the garage or driveway overnight, the vehicle sits for hours in a much cooler environment. During this time, the heat slowly dissipates from the dashboard plastics and the underlying circuit boards. As the materials cool, they undergo the contraction phase. The physical contraction pushes the micro-cracks back together, restoring the metal-to-metal electrical connection across the solder joints.

When you start the car the next morning, the vehicle's internal computer runs its standard diagnostic check. Because the connection has been physically restored by the cooler temperatures, the computer registers no faults. You enjoy a perfectly normal morning commute, completely free of warning lights.

The Danger of a False Sense of Security

This pattern creates a dangerous false sense of security. It is easy to contrast the relatively cooler early morning temperatures with the intense, baked-in heat of a late-summer afternoon and assume the car just "had a glitch" yesterday. However, the micro-cracks are still there. They have not healed; they are simply resting in a closed position.

Ignoring this pattern leads to permanent separation. Eventually, the constant expanding and contracting will widen the crack to the point where it no longer makes contact even when cold. If you wait until that happens, you run the risk of the instrument cluster failing completely while driving on a busy highway, leaving you without a speedometer, fuel gauge, or vital engine temperature readings.

• Early Morning — Cabin Environment: Cool, ambient temperatures — Solder Joint Status: Contracted, cracks pressed closed — Dashboard Result: Normal operation, no warning lights

• Late Afternoon — Cabin Environment: Baked, heat-soaked (140°F+) — Solder Joint Status: Expanded, micro-cracks separated — Dashboard Result: Intermittent "ghost" warning lights

Failing Sensors vs. Instrument Cluster Faults

When a warning light illuminates on your dashboard, it is critical to determine exactly what that light is trying to tell you. A warning light can mean one of three things: the sensor is detecting a real mechanical issue, the sensor itself is failing, or the instrument cluster is misinterpreting the signal due to a cracked solder joint.

Tracing the Electrical Signal

Sensors are located all over your vehicle—monitoring wheel speed, engine temperature, oil pressure, and exhaust gases. These sensors communicate with the vehicle's computer via a network of wiring harnesses. The signal travels from the sensor, through the wiring, into the computer, and finally to the instrument cluster board. When the cluster board expands due to heat, the signal gets lost right at the finish line.

However, assuming a warning light is just a dashboard glitch can be a catastrophic mistake if the underlying issue is a legitimate mechanical failure. For example, our technicians recently worked on a 1996 Cherokee Sport brought into our bays during the late summer months with an engine oil light illuminated. The owner might have assumed it was an electrical glitch due to the vehicle's age and the hot weather. Instead, our thorough car diagnostic inspection traced the electrical signal and revealed a damaged oil sending unit caused by neglect from another shop. Because our team accurately diagnosed the issue, the owner avoided severe engine damage.

Neglecting underlying issues based on assumptions can cause secondary damage that is far more difficult to fix than a simple electrical fault.

Why Precise Electrical Diagnostics Matter

When faced with intermittent electrical issues, the approach your mechanic takes makes all the difference in the world. Modern automotive electrical systems are incredibly complex, and finding a microscopic crack in a circuit board requires patience, expertise, and the right equipment.

Avoiding the 'Parts Cannon' Approach

Unfortunately, many shops will simply guess at the problem. When they see a code for a communication failure, they resort to the "parts cannon" approach—recommending the replacement of the entire expensive instrument cluster unit without actually pinpointing the failure. Replacing parts based on generic codes is a dangerous game that often leaves the customer with a massive bill and a vehicle that still has the same problem.

At Marlow Automotive, our commitment is to honest, precise electrical diagnostics without resorting to the parts cannon approach. By utilizing specialized equipment to trace the exact point of electrical failure, we can determine whether the issue is a simple wiring short, a failing sensor, or a repairable solder joint on the cluster board.

Consider a Lexus that our team recently serviced. The owner had received an inflated repair estimate from another facility that recommended swapping out major electrical components. By performing an honest, pinpoint evaluation in our shop, the unnecessary repairs were identified, saving the customer a significant amount of money with a fair and accurate repair bill. Targeted diagnostics provide long-term reliability and keep unnecessary replacements off your invoice. Because of the specialized equipment and knowledge required, we always advise that this level of automotive electronic repair should not be attempted as a DIY project.

Frequently Asked Questions About Heat-Triggered Warning Lights

Can hot weather cause dashboard lights to come on?

Yes, we frequently see hot weather directly cause dashboard lights to illuminate. The intense heat inside a parked car causes the physical materials on the instrument cluster circuit board to expand. If the board has microscopic cracks in its solder joints from years of wear, this thermal expansion pushes the cracks apart, breaking the electrical connection and triggering a warning light.

Why does my check engine light come on when it's hot?

Your check engine light may come on in hot weather due to thermal expansion affecting the wiring or circuit boards behind the dashboard. When the cabin temperature exceeds 140 degrees, aging solder joints separate, causing the vehicle's computer to lose communication with engine sensors. The computer registers this loss of communication as a fault and turns on the check engine light as a precaution.

Can heat affect car electronics?

Absolutely, extreme heat is one of the leading causes of wear for car electronics. Prolonged exposure to high temperatures bakes the plastic and metal components, accelerating the degradation of solder joints and wiring insulation. Over time, this constant heat-soaking creates physical stress that leads to intermittent electrical failures and "ghost" warning lights.

Why do electrical problems happen when my car gets hot?

Electrical problems surface when a car gets hot because dissimilar materials in the electronic components expand at different rates. The fiberglass circuit boards and the metal solder joints react differently to the heat, creating mechanical stress. This stress temporarily pulls weak connections apart, leading to dropped signals, flickering gauges, and warning lights that magically disappear once the car cools down.

How can I tell if a warning light is a real mechanical issue or a dashboard glitch?

The only definitive way to tell the difference is through professional electrical diagnostics. While a light that only appears on hot afternoons and vanishes in the morning is a strong indicator of a thermal expansion glitch, you should never assume a warning light is false. A trained technician at Marlow Automotive uses specialized scan tools and multimeters to trace the signal from the sensor to the dashboard, confirming whether the mechanical part is failing or the circuit board is at fault.

Restoring Confidence in Your Dashboard

Heat-triggered ghost lights are a diagnosable physical issue, not a permanent mystery. There is a clear, logical explanation for those afternoon dashboard gremlins, and you do not have to live with the daily uncertainty of wondering if your car is safe to drive. By understanding the cycle of thermal expansion and seeking out precise, honest diagnostic testing, you can address the microscopic wear and tear before the cluster fails completely. Schedule a professional assessment with Marlow Automotive today and restore total confidence in your vehicle's dashboard.
